Diamond First K9000 Mobile Electric Industrial Base

Product Description

The K9000 (K-9000) is a motorized antenna base designed for vehicle use. It allows you to install a compatible antenna (sold separately) on your car and adjust its angle automatically from inside the vehicle using the included controller. The antenna angle can be set anywhere between 45 and 90 degrees, making it easy to adapt to different driving or parking situations. An LED lamp indicates the direction in which the antenna is tilting, providing clear visual feedback. The base is engineered for stability and strength, ensuring the antenna remains secure without wobbling. Power is supplied via your vehicle’s cigarette lighter socket. For optimal performance, it is recommended to use antennas and coaxial cables from the same manufacturer, though other brands are also compatible. Please note that the K9000 requires additional mounting brackets (sold separately) to fit various vehicle locations and cannot be used alone.

Product Specification

- Dimensions: Height 66mm × Width 64mm × Depth 102mm
- Weight: Approximately 440g
- Operating Voltage: DC 13.8V (range 10–16V)
- Power Consumption: Maximum 0.95A (at 13.8V)
- Operating Speed: Approximately 4 seconds (0–90 degrees)
- Adjustable Angle: 45–90 degrees
- Drive Torque: 40kg·cm or higher
- Fuse Capacity: 0.8A
- Maximum Supported Antenna: Length up to 1.4m, weight up to 350g

Included Parts

- Main base unit
- Mount washer
- Antenna mount
- Flat washer (M6)
- Spring washer (M6)
- Cap nut (M6)
- Hook-and-loop fastener
- Control switch assembly
- Cigarette lighter plug (with 0.8A fuse)
- Base bracket
- External tooth washer (×2)
- Spring washer (×2)
- Hex socket bolt (×2)
- Flat washer (M4, ×4)
- Spring washer (M4, ×4)
- Screw (M4×14, ×4)
- Control cable
- L-shaped wrench (L5)
- Instruction manual

Usage

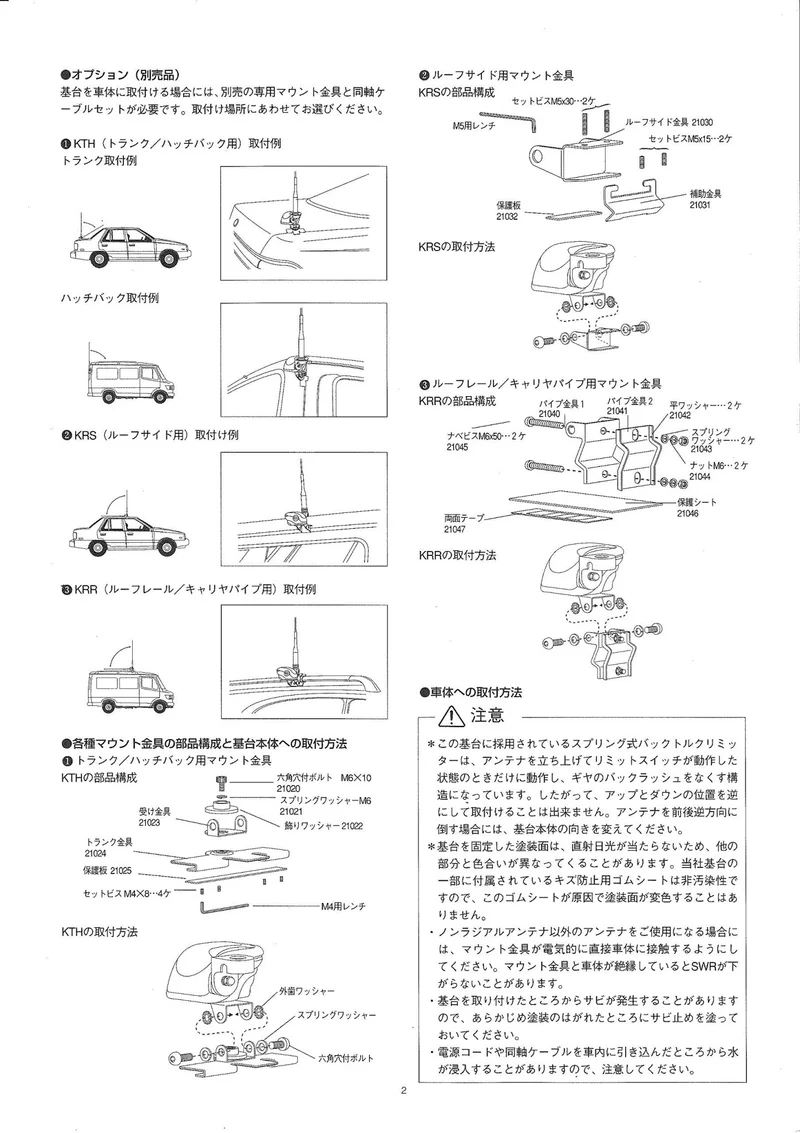

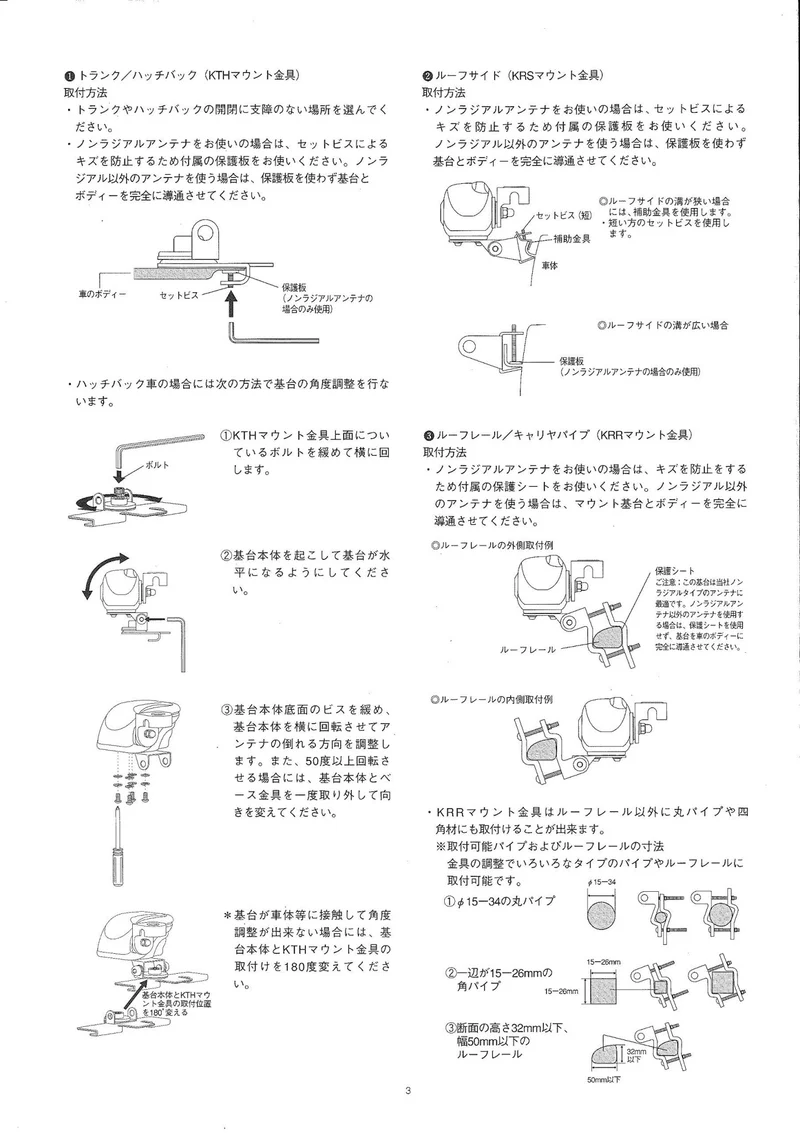

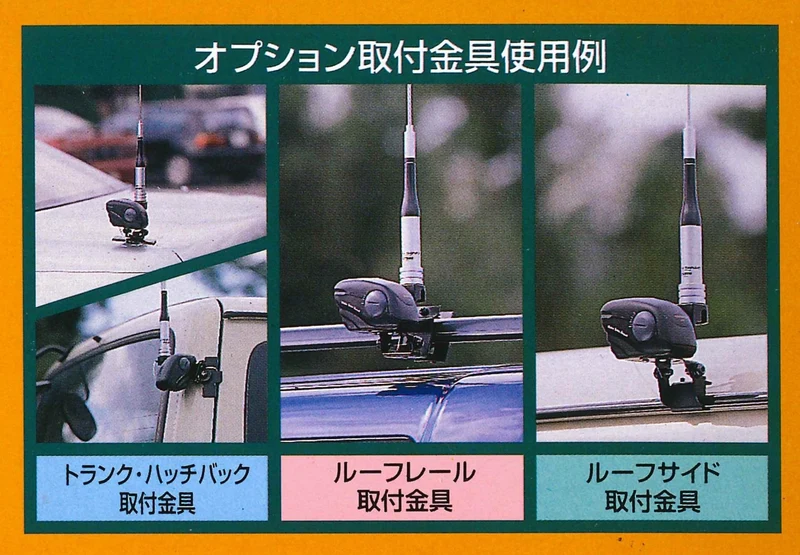

To use the K9000, install a compatible antenna (up to 1.4m in length and 350g in weight) on your vehicle using the appropriate mounting bracket for your car’s specific location (such as magnet base, trunk, hatchback, roof side, or roof rail brackets—sold separately). Connect the base to your vehicle’s cigarette lighter socket for power. Use the included controller to adjust the antenna angle between 45 and 90 degrees as needed. The LED indicator will show the direction of the antenna’s tilt. For best results, use antennas and coaxial cables from the recommended manufacturer.
